The WM 542 pedal with electronic output is designed for use in variety of applications. It allows to be fitted with different contanct or non-contact type position sensors and installed with different brackets ,depending on specific customer requrirements .
  WM542电子油门踏板使用广泛，根据客户要求，可以选配各种接触式或非接触式传感器，选择不同的安装板。

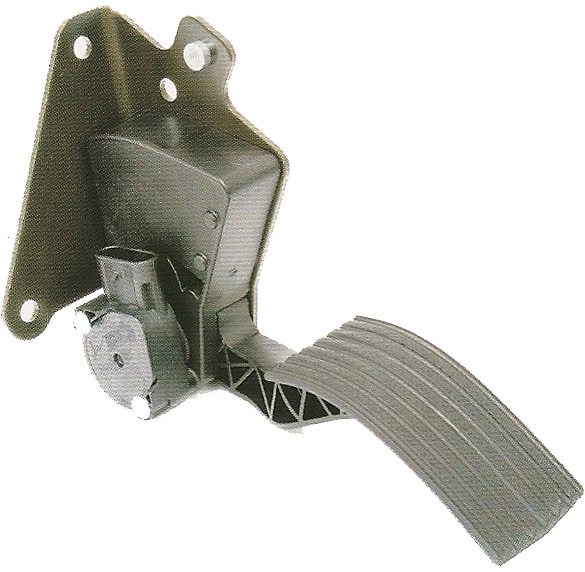

WM542 系列电子油门悬挂式踏板
WM542 Series Electronic Suspendde Pedal Assembly

产品特点及规范 Features and Specifications
* 踏板行程  Pedal Rotation
   20°±2°
* 符合标准 Specifications compliances
   FWVSS-302 FWVSS-124
* 传感器类型 Contact Type
   Contact Sensor ,Non-contact Sensor optional
* 电磁干扰屏幕 EMI resistant
   SAE-J1113-1
* 密封性 Sealed compliant
   IP67
* 工作温度 Operating Temperature
   -40℃-85℃
* 额定寿命 Rated Life
   3,000,000 Cycles
* 客户可定制安装支撑板   Custom Steel bracket
