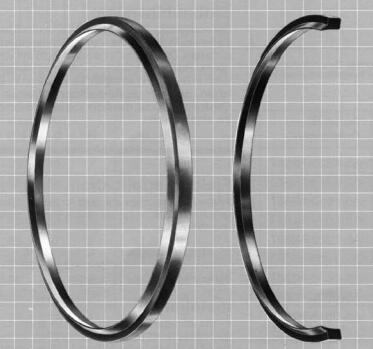

PARKER派克 A5型防尘圈

   A5型防尘圈的作用是防止粉尘、污物、沙粒或细屑进入。这可以通过一种特殊设计来实现，它可大大地保护导向零件，延长密封件的使用寿命。A5防尘圈在其安装时无需环首螺钉或托架。不需要严格的公差，也不需要金属插件。防尘圈是以连续环来供应的，极容易装入沟槽中。应避免防尘圈背部受压。

应用范围

  A5型防尘圈用于液压缸和气缸的轴向操纵杆、柱塞、活塞杆。

  工作温度：    -35℃至+100℃

  表面速度：    ≤2 m/s

材料

  标准材料为邵氏硬度A约90的NBR橡胶。

  在决定所用材料之前，请与本公司的咨询服务部联系。本公司还可提供派克聚氨酯材料防尘圈，材料P5004。

  对于高温及耐化学介质的工况，推荐用本公司氟橡胶防尘圈，材料编号为 V3664。

安装

   A5型防尘圈容易装入结构相当简单的沟槽中。应避免防尘圈唇口与活塞杆孔眼或其它连接零件相接触。但是，防尘圈最好装在壳体外，这样挡出的污物容易清除。

  若有特殊要求(温度、速度、用于水、HFA液、HFB液等介质中)，请于本公司的咨询服务部联系，以便向您推荐合适的材料和结构。

  A5型防尘圈在高速、长行程工况下,极易带出装配沟槽，请谨慎使用。

 产品号          Ød*D*H/L

A50205N3587     5*8*3/2.3

A51484N3587     19*25.4*4/2.8

A52010N3587     20*28*7/5.3

A52014N3587     22*30*7/5.3

A52020N3587     25*33*7/5.3

A52035N3587     28*36*7/5.3

A53002N3587     30*38*7/5.3

A53007N3587     32*40*7/5.3

A53015N3587     35*43*7/5.3

A53020N3587     36*44*7/5.3

A54002N3587     40*48*7/5.3

A54015N3587     42*50*7/5.3

A54030N3587     45*53*7/5.3

A54033N3587     45*55*7/5.3

A54040N3587     46*54*7/5.3

A55013N3587     50*58*7/5.3

A55002N3587     50*60*7/5.3

A55015N3587     55*63*7/5.3

A55017N3587     55*65*7/5.3

A55022N3587     56*66*7/5.3

A56068N3587     60*68*7/5.3

A56005N3587     60*70*7/5.3

A56008N3587     63*71*7/5.3

A56010N3587     63*73*7/5.3

A56013N3587     64*72*7/5.3

A56015N3587     65*73*7/5.3

A56020N3587     65*75*7/5.3

A57015N3587     70*78*7/5.3

A57020N3587     70*80*7/5.3

A57023N3587     70*82*12/7.1

A57088N3587     75*83*7/5.3

A57092N3587     75*87*12/7.1

产品号           Ød*D*H/L

A57093N3587     75*88*7/5.3

A58004N3587     80*88*7/5.3

A58008N3587     80*92*12/7.1

A58060N3587     85*93*7/5.3

A58070N3587     85*97*12/7.1

A59002N3587     90*98*7/5.3

A59004N3587     90*102*12/7.1

A59009N3587     92*100*7/5.3

A59015N3587     95*103*7/5.3

A5A015N3587     100*108*7/5.3

A5A018N3587     100*112*12/7.1

A5A013N3587     105*113*7/5.3

A5A020N3587     105*120*12/7.1

A5B020N3587     110*118*7/5.3

A5B022N3587     110*122*12/7.1

A5B026N3587     112*120*7/5.3

A5B045N3587     115*123*7/5.3

A5B050N3587     115*125*7/5.3

A5B055N3587     115*127*12/7.1

A5B068N3587     118*128*7/5.3

A5C016P5004     120*140*14.5/9.5

A5C060N3587     125*133*7/5.3

A5C070N3587     125*137*12/7.6

A5C080N3587     125*140*16/10.1

A5C081N3587     127*136.5*7/5.3

A5D010N3587     130*142*12/7.1

A5E025N3587     140*148*7/5.3

A5E027N3587     140*152*12/7.1

A5E030N3587     140*155*16/10.1

A5E040N3587     143*151*7/5.3

A5E041N3587     143*153*7/5.3

A5E050N3587     145*153*7/5.3

 产品号          Ød*D*H/L

A5E059N3587     145*160*16/9.1

A5F030N3587     150*165*16/10.1

A5F040N3587     152*160*7/5.3

A5F050N3587     155*167*12/7.1

A5F051N3587     155*175*18/10.2

A5G020N3587     160*168*7/5.3

A5G024N3587     160*172*12/7.6

A5G030N3587     160*175*16/10.1

A5G062N3587     165*173*7/5.3

A5H008N3587     170*182*12/7.1

A5H010N3587     171*181*7/5.3

A5H009N3587     171*183*12/7.1

 产品号           Ød*D*H/L

A5H050N3587     175*183*7/5.3

A5J008N3587     180*200*18/10.2

A5J033N3587     185*193*7/5.3

A5K008N3587     190*198*7/5.3

A5K050N3587     195*210*16/10.1

A5L025N3587     200*220*18/10.2

A5L075N3587     210*225*16/10.1

A5M040N3587     220*240*18/10.2

A5M050N3587     230*250*18/10.2

A5N005N3587     240*260*18/10.2

A5N013N3587     250*270*18/10.2

A5Q608N3587     360*380*18/10.2
